Biomass Power Plant
Biomass power plants efficiently convert organic matter into clean, renewable energy. By burning plant or animal-derived waste in a boiler, the heat generated is transformed into clean electricity through a Rankine cycle, thereby reducing reliance on fossil fuels.
In small biomass power plants, ORC technology is the ideal choice due to its high efficiency, availability and ability to follow loads dependent on fuel supply. In addition, the elimination of the steam turbine of traditional biomass power solutions brings with it a number of maintenance and operational advantages.
The Exergy solution for power generation from biomass is an ORC module utilizing the Radial Outflow Turbine coupled with a biomass boiler.
TRASFORMING BIOMASS WASTE INTO CLEAN POWER

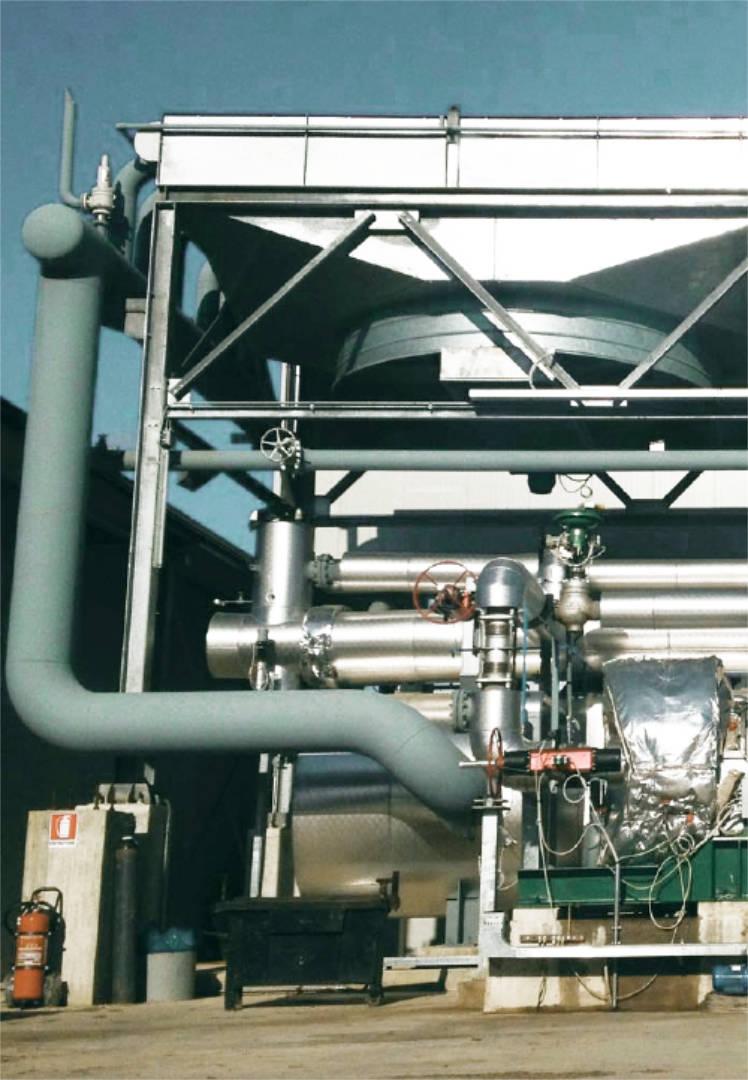

Biomass Power Plant with ORC
The ORC module can be used to produce electrical power and thermal power, the latter utilized for combined heat and power production (CHP) purposes such as:
The biomass feed for the boiler that can be exploited as “fuel” includes, for example: leftover materials from the wood industry, olive waste, husks of cereals and fruit and other secondary biomass.
Why install an ORC biomass plant?
Advantages of an ORC biomass power plant:
1
THE POSSIBILITY TO FEED BOTH HEAT AND POWER NEEDS IN ONE SOLUTION
Higher power and efficiency to capital cost ratio
Electrical efficiency up to 30%
2
MULTIPLE PRESSURE ADMISSIONS POSSIBLE ON A SINGLE DISK
High reliability
3
FLEXIBILITY IN BIOMASS FEED QUALITY
Wider range of application possibilities
Proven and widely applied technology
4
SMALL MODULAR AND LIGHTWEIGHT PLANT
Easy installation
Few civil works required
5
NO STEAM TURBINE
Simpler operation
Reduced maintenance
6
NO WATER CONSUMPTION
Reduced environmental impact
No need for plant proximity to a water supply
How ORC Biomass Power Plants work
The boiler, via the combustion process, converts the biomass in thermal power to feed the ORC module. The hot exhaust gas warms up the intermediate fluid in a heat exchanger. The ORC-boiler interface circuit transfers thermal power from the boiler to the ORC evaporator. Commonly employed intermediate fluids between the boiler and ORC are thermal oil, pressurized water or steam.
The interface fluid transfers heat to the organic fluid in the ORC evaporator, where it vaporizes. The vaporized fluid then passes to the turbine. Here, the vapor expands, causing the turbine to spin and create electricity in the generator.
